KTM

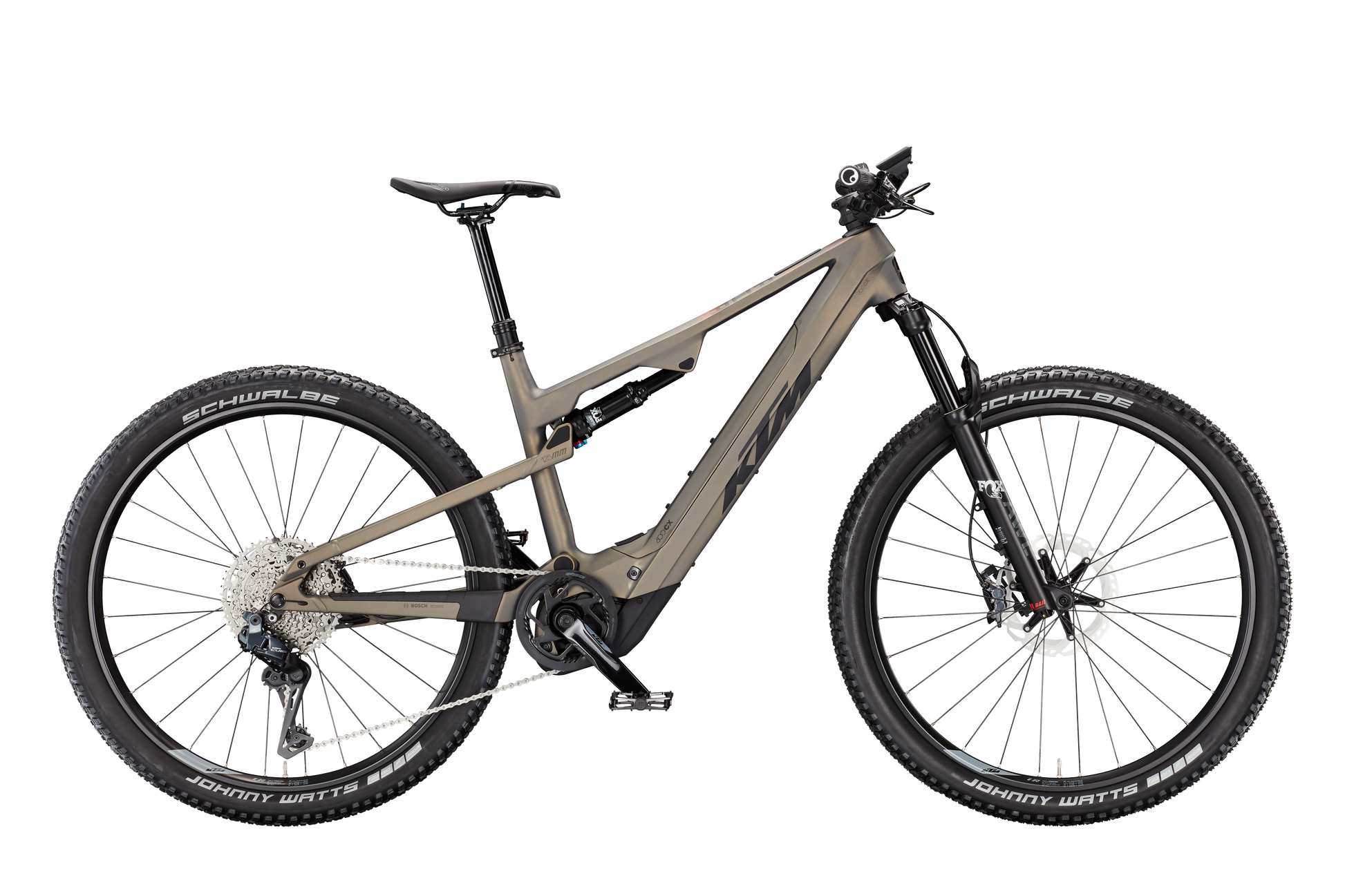

MACINA CHACANA 891 Di2
MACINA CHACANA 891 Di2
SKU:1260032103
| frame | Macina Chacana Al6061 125 UDH|PT800 Bosch BDU38/M5290 |
| fork | FOX 34 Float AWL 29" E 130mm 15x110 |
| rear-shock | FOX Float DPS Performance 230x57.5 |
| derailleur | Shimano CUES Di2 U8050-11 SGS shadow |
| shift-levers | Shimano CUES Di2 EN605 Switch |
| brake-front | Shimano Deore XT M8100 / M8120 4-Piston |
| brake-rear | Shimano Deore XT M8100 / M8120 4-Piston |
| brake-disc-front | Shimano RT64 CL 203 |
| brake-disc-rear | Shimano EM600 CL 180 magnet |
| rim-front | Ambrosio E30 Trail 28H 622x30TC |
| rim-rear | Ambrosio E30 Trail 28H 622x30TC |
| tire-front | Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622 |
| tire-rear | Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622 |
| hub-front | DT Swiss 370 CL 28H 110/15TA |
| hub-rear | DT Swiss 370 CL 28H 148/12 TA |
| spokes | DT Champion 2.0 black / DT Champion 2.0 black |
| handlebar | KTM COMP Trail35 rizer15 760mm |
| stem | KTM TEAM Trail35 |
| headset | Acros AICR intern 1.1/8"-1.5" angle lim |
| grips | Ergon GA20 |
| saddle | Selle San Marco RND Manganes Rails |
| seat-post | KTM COMP II dropper internal 34.9 T:125 |
| seat-clamp | KTM TEAM Light CL-FJ21 - 39,0mm x 12 |
| crankset | KTM E-TEAM ISIS 170mm Q16 |
| drive | KMC e500 LG e-bike |
| sprockets | Shimano LG400-11 / 11-50 |
| pedals | MTB-Pedal flat VPE-527 alloy |
| lock | ABUS integrated lock IT1 (X-Plus key) |
| motor | Bosch PERFORMANCE CX BDU3840 |
| battery | Bosch PowerTUBE 800Wh horizontal |
| battery-capacity | 800 |
| display | Bosch LED Remote / KIOX 300 TFT Display |
| charger | Bosch STANDARD Charger 4A |
| Geometrie | Klik hier voor de geometrie |
| Frame size | Klik hier voor de juiste maatvoering |
