KTM

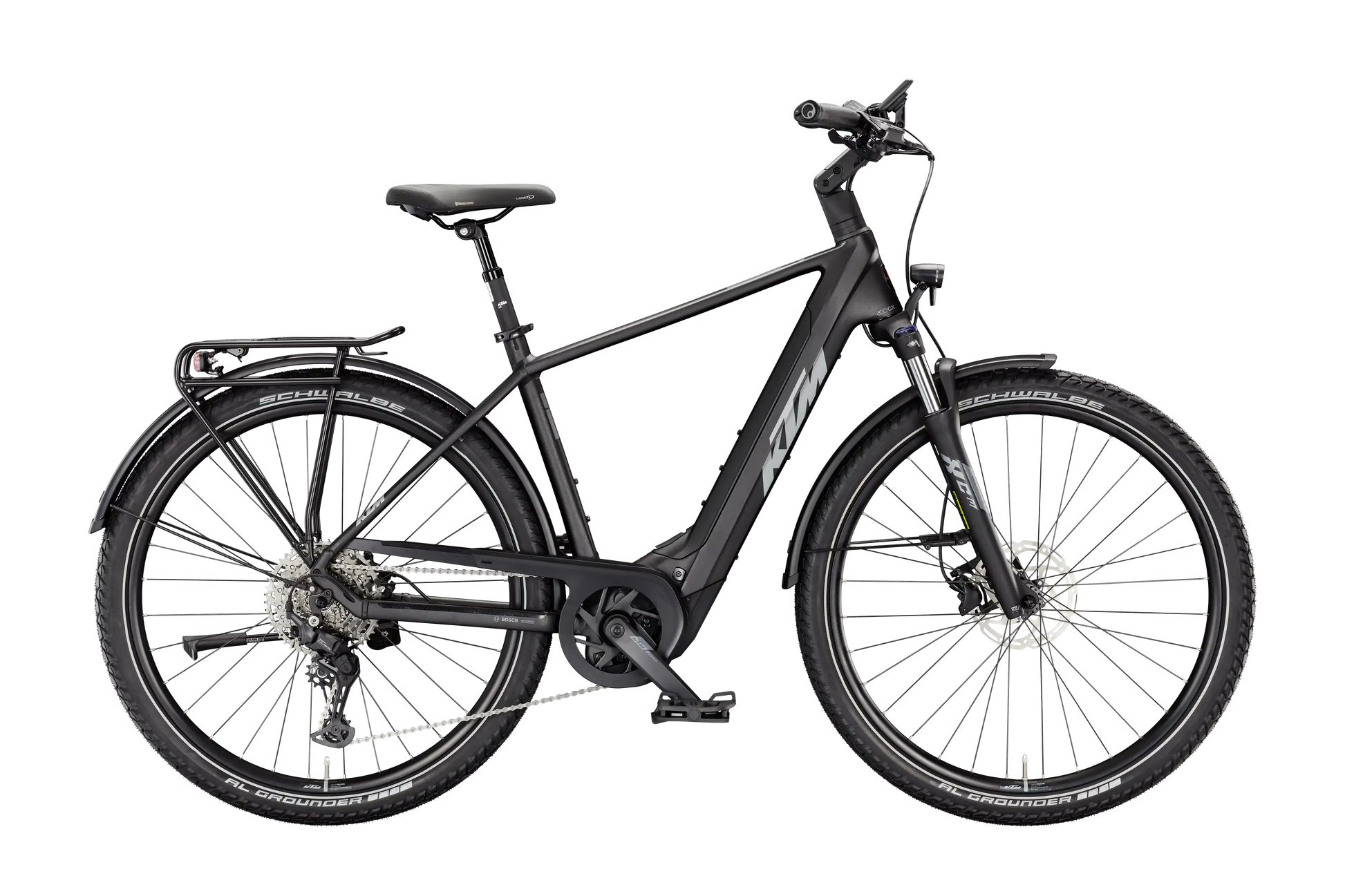

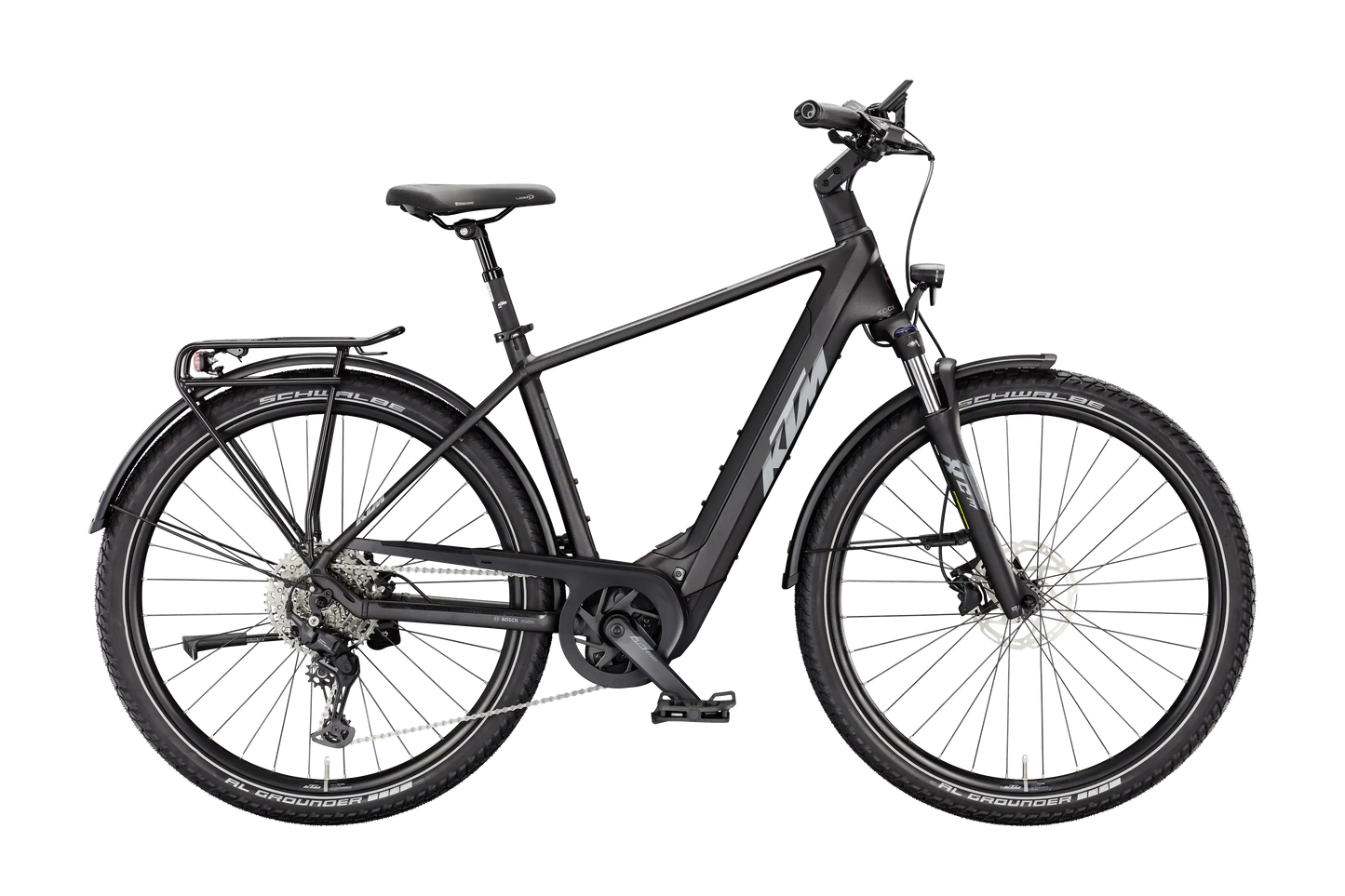

MACINA GRAN 820
MACINA GRAN 820
SKU:1260132136
| frame | Macina Trekking Onroad Alloy 6061|PT800 Bosch BDU38/T5940 |
| fork | Suntour XCM 32 ATB coil 29" NLO 80mm |
| derailleur | Shimano CUES U6000-11/10 LG shadow+ |
| shift-levers | Shimano CUES U6000-10 display |
| brake-front | Tektro HD-T390 / E390 2-Piston |
| brake-rear | Tektro HD-T390 / E390 2-Piston |
| brake-disc-front | Tektro TR-45 2.3mm CL 180 |
| brake-disc-rear | Tektro TR-45 2.3mm CL 160 |
| rim-front | Ryde Rival30 32H 622x30C |
| rim-rear | Ryde Rival30 32H 622x30C |
| tire-front | Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex |
| tire-rear | Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex |
| hub-front | Shimano Deore M5100 CL 32H 100-5QR |
| hub-rear | Shimano Deore M6000 CL 32H 135-5QR |
| spokes | DT Champion 2.0 black / DT Alpine II 2.34 black |
| handlebar | Ergotec Lady Town 630mm |
| stem | KTM Line adjust. 0-60° ICR |
| headset | Acros AICR internal 1.5"-1.5" |
| grips | Ergon GP1 SD |
| saddle | Selle Royal Lookin |
| seat-post | KTM COMP dropper internal 30.9 T:100 |
| seat-clamp | KTM Line JD-SC99 - 34,9mm |
| crankset | KTM E-COMP ISIS 170mm Q16 |
| drive | Shimano LG500 |
| sprockets | Shimano LG400-10 / 11-48 |
| pedals | Trekking-Pedal VP-616 anti-slip |
| front-light | B&M Myc 50Lux |
| rear-light | B&M Toplight 2C |
| rack | KTM light60 snap-it 2.0/monkeyload|childseat + rack clip |
| mudguards | SKS A69R PET Trek 28" |
| chainguard | KTM type 9 for Bosch BDU38 |
| stand | KTM 28" adjustable MY2025 |
| lock | ABUS integrated lock IT1 (X-Plus key) |
| motor | Bosch PERFORMANCE CX BDU3840 |
| battery | Bosch PowerTUBE 800Wh horizontal |
| battery-capacity | 800 |
| display | Bosch LED Remote / INTUVIA 100 LCD Display |
| charger | Bosch STANDARD Charger 4A |
| Geometrie | Klik hier voor de geometrie |
| Frame size | Klik hier voor de juiste maatvoering |
