KTM

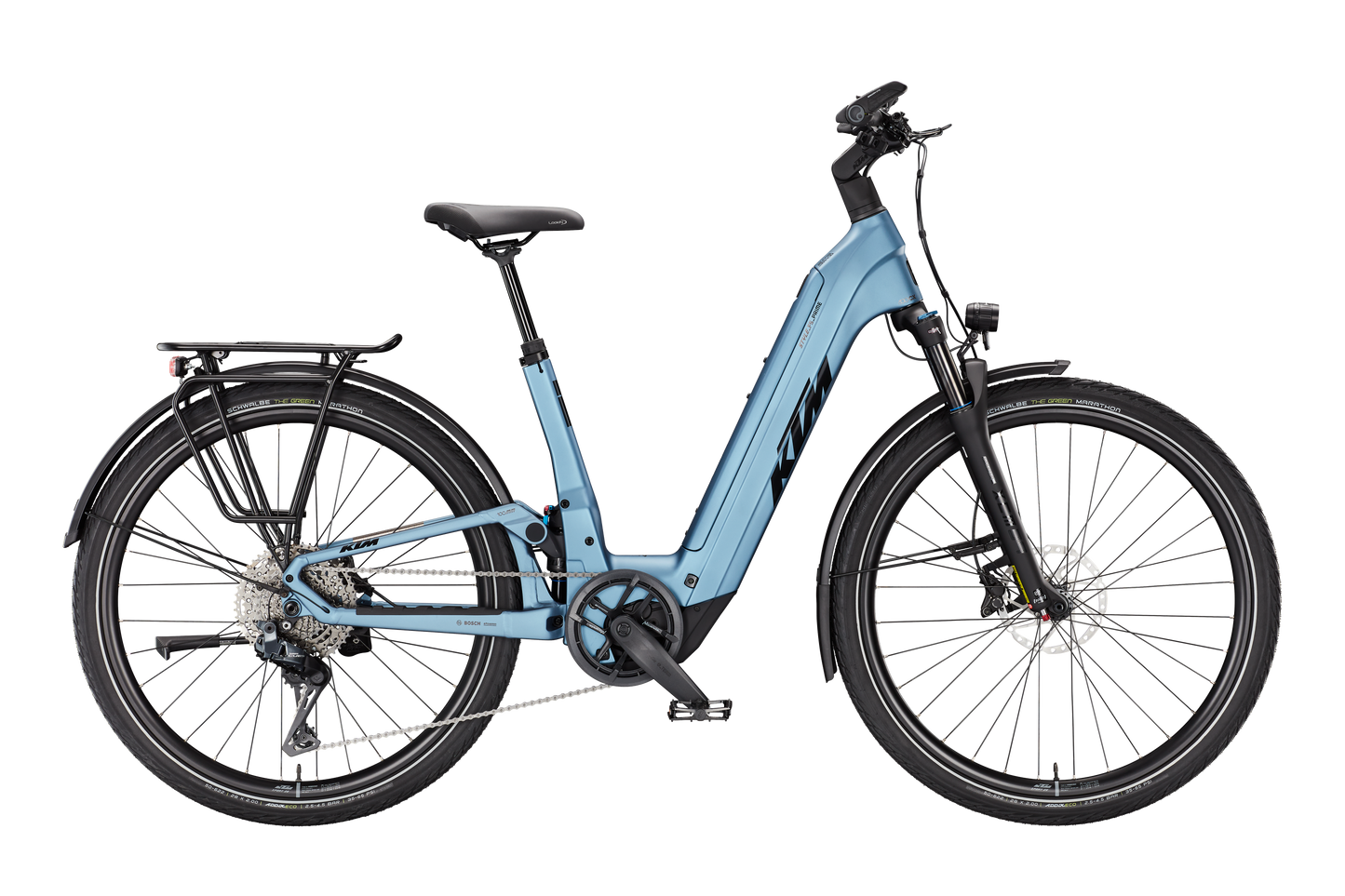

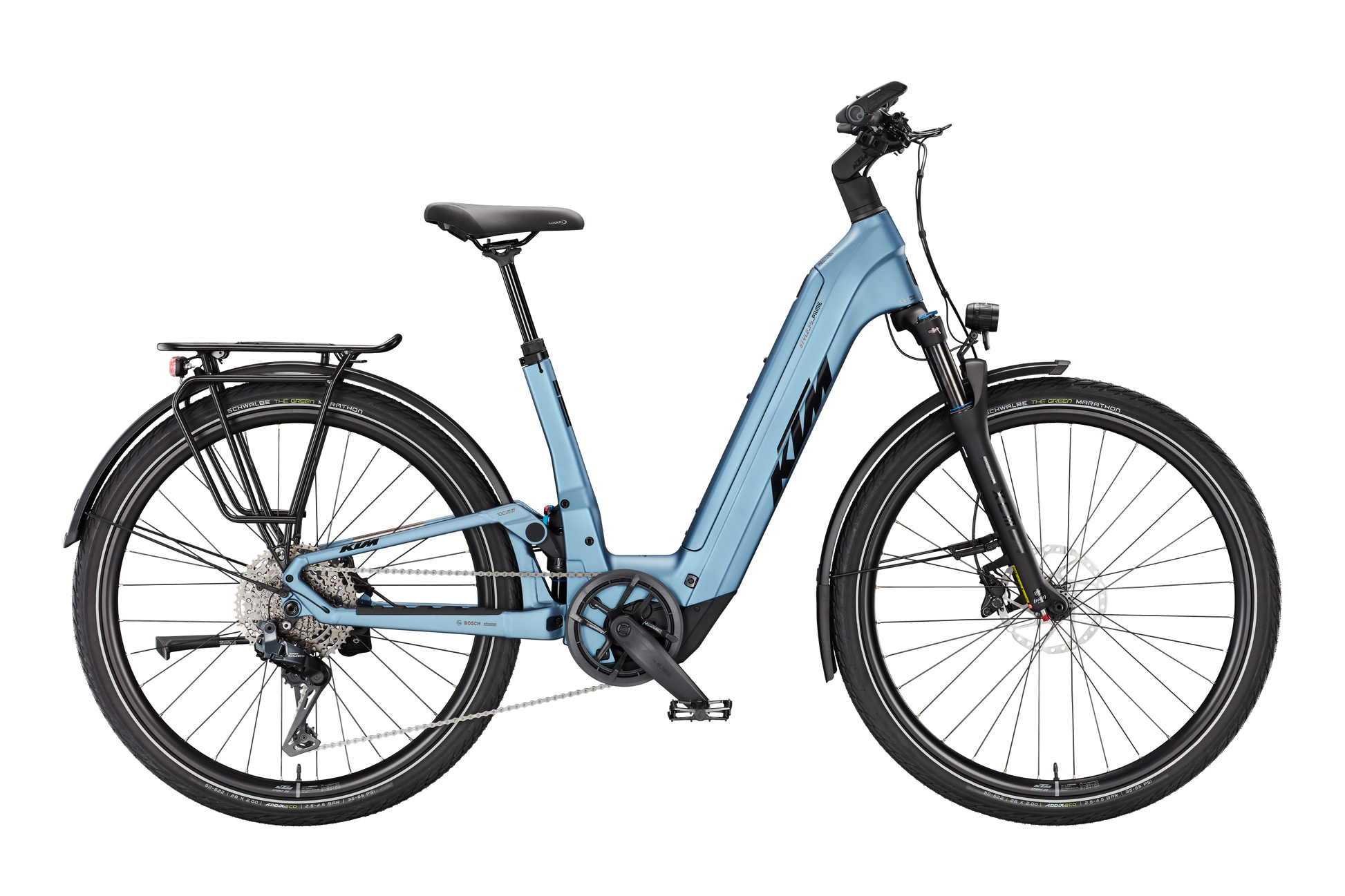

MACINA STYLE FS PRIME Di2
MACINA STYLE FS PRIME Di2
SKU:1260145500
| frame | Macina Style Carbon 100 UDH|PT800 Bosch BDU38/T5880 |
| fork | Suntour XCM34 Air 27,5" LOR 100mm 15x110 |
| rear-shock | Suntour EDGE-EVO 2CR 190x45 |
| derailleur | Shimano CUES Di2 U8050-11 SGS shadow |
| shift-levers | Shimano CUES Di2 EN605 Switch |
| brake-front | Shimano MT402 (3-F) / MT420 4-Piston |
| brake-rear | Shimano MT402 (3-F) / MT420 4-Piston |
| brake-disc-front | Shimano RT64 CL 180 |
| brake-disc-rear | Shimano EM600 CL 180 magnet |
| rim-front | Ambrosio Sport 25 584 32H 622x25C |
| rim-rear | Ambrosio Sport 25 584 32H 622x25C |
| tire-front | Schwalbe Green Marathon Perf. GreenGuard 55-584 |
| tire-rear | Schwalbe Green Marathon Perf. GreenGuard 55-584 |
| hub-front | Shimano TC500B CL 32H 110-15TA |
| hub-rear | Shimano TC600B CL 32H 148-12TA |
| spokes | DT Champion 2.0 black / DT Alpine II 2.34 black |
| handlebar | KTM TEAM II rizer15 700mm |
| stem | KTM Line adjust. 0-60° ICR |
| headset | Acros AICR internal 1.5"-1.5" |
| grips | Ergon GP30 |
| saddle | Selle Royal Lookin Evo |
| seat-post | KTM Line II dropper 30.9 T:100 |
| seat-clamp | KTM Line JD-SC140A - 35,0mm |
| crankset | KTM E-TEAM2 ISIS 170mm Q8 |
| drive | Shimano LG500 |
| sprockets | Shimano LG400-11 / 11-50 |
| pedals | MTB-Pedal flat VPE-527 alloy |
| front-light | B&M IQ-XM 120-170Lux HighBeam |
| rear-light | B&M Toplight 2C |
| rack | KTM light 42 snap-it 2.0/monkeyload|rack clip |
| mudguards | SKS A65R PET Trek 27,5" |
| stand | KTM 28" adjustable MY2025 |
| lock | ABUS integrated lock IT1 (X-Plus key) |
| motor | Bosch PERFORMANCE CX BDU3840 |
| battery | Bosch PowerTUBE 800Wh horizontal |
| battery-capacity | 800 |
| display | Bosch LED Remote / KIOX 500 TFT Display |
| charger | Bosch STANDARD Charger 4A |
| Geometrie | Klik hier voor de geometrie |
| Frame size | Klik hier voor de juiste maatvoering |
