KTM

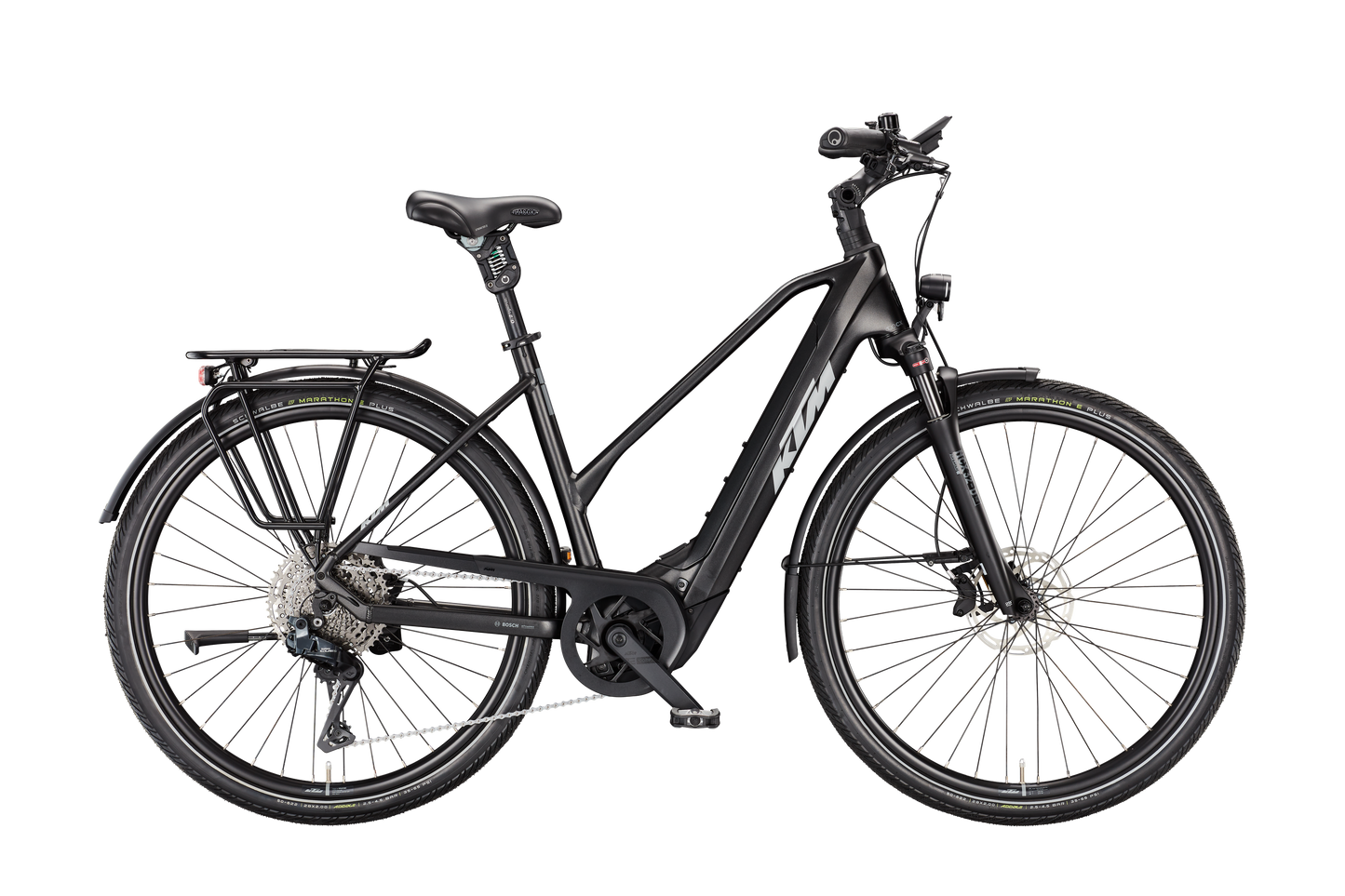

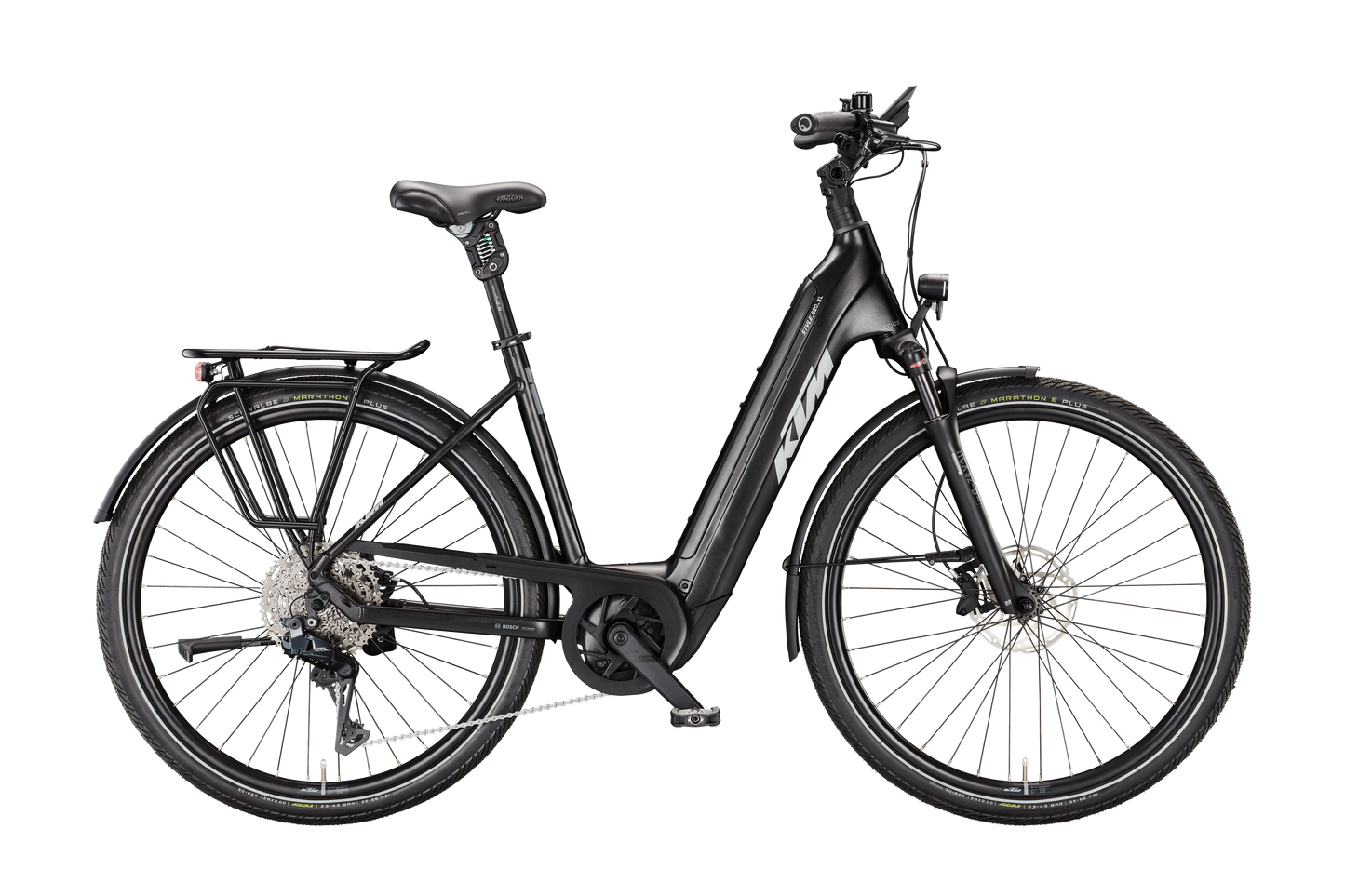

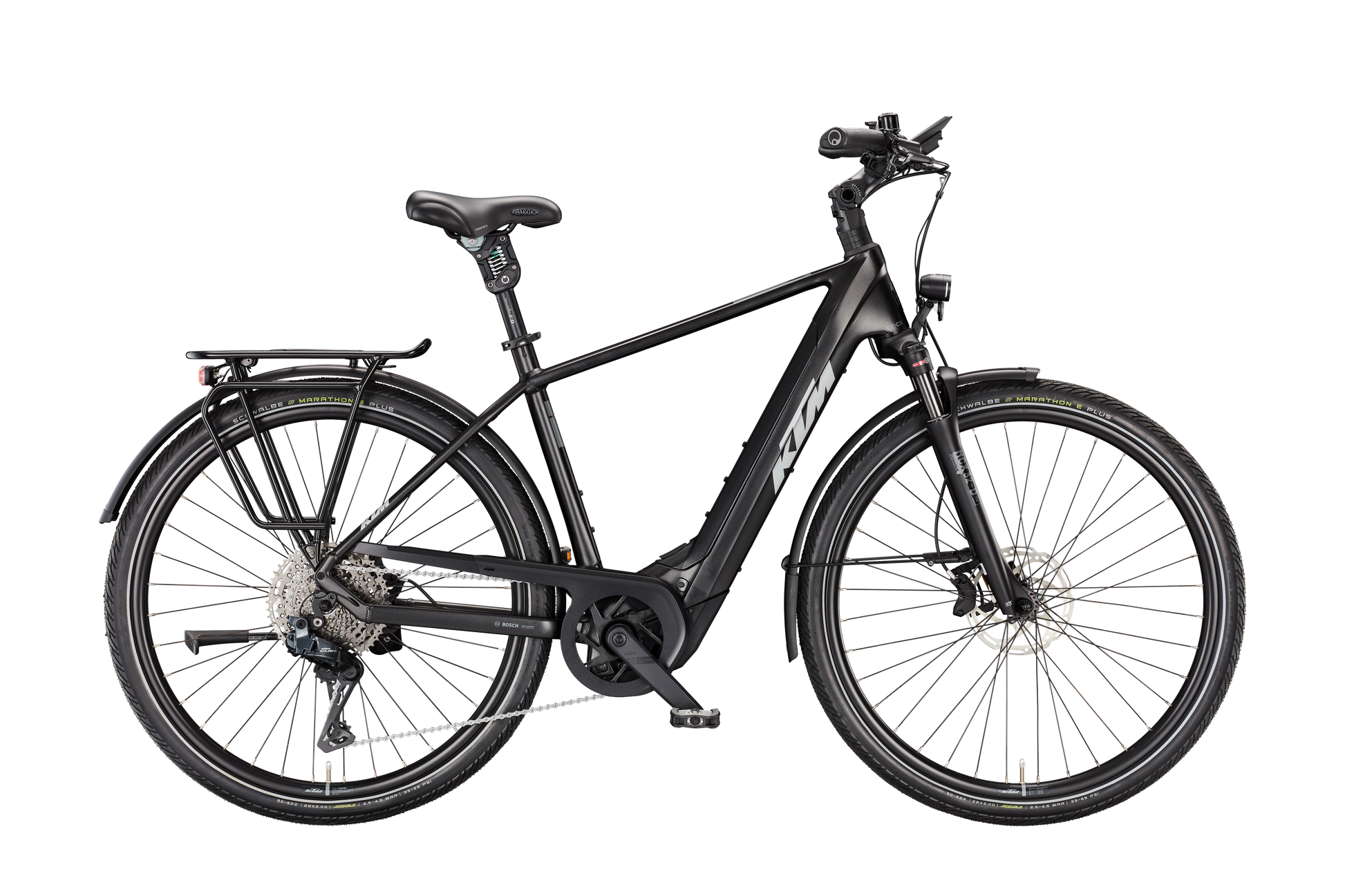

MACINA STYLE 820 XL Di2
MACINA STYLE 820 XL Di2
SKU:1260151106
| frame | Macina Trekking Onroad Alloy 6061|PT800 Bosch BDU38/T5940 |
| fork | Suntour NCX32-D coil LO 63mm (HD) 1 1/8 |
| derailleur | Shimano CUES Di2 U8050-11 SGS shadow |
| shift-levers | Shimano CUES Di2 EN605 Switch |
| brake-front | Tektro TKD-139 / HD-E730 4-Piston |
| brake-rear | Tektro TKD-139 / HD-E730 4-Piston |
| brake-disc-front | Tektro TR-45 2.3mm CL 180 |
| brake-disc-rear | Tektro TR-45 2.3mm CL 180 |
| rim-front | Ryde Andra29 36H 622x29C |
| rim-rear | Ryde Andra29 36H 622x29C |
| tire-front | Schwalbe Marathon E-Plus Perf. DualGuard 50-622 Reflex |
| tire-rear | Schwalbe Marathon E-Plus Perf. DualGuard 50-622 Reflex |
| hub-front | Shimano Deore M6000 CL 36H 100-5QR |
| hub-rear | Shimano Deore M5100 CL 36H 135-5QR |
| spokes | DT Alpine II 2.34 black / DT Alpine II 2.34 black |
| handlebar | Ergotec Lady Town 31,8 690mm |
| stem | Ergotec Swell RE70i adjust. 0-60° |
| headset | Acros AICR intern 1.1/8"-1.5" angle lim |
| grips | GRIP ERGON GP10 |
| saddle | Selle Royal Viaggio |
| seat-post | bySchulz G.2 ST suspension 30.9/350 |
| seat-clamp | KTM Line JD-SC99 - 34,9mm |
| crankset | KTM E-COMP2 ISIS 170mm Q8 |
| drive | KMC e11 Sport EPT e-bike |
| sprockets | Shimano LG400-11 / 11-50 |
| pedals | Trekking-Pedal VP-616 anti-slip |
| front-light | B&M IQ-XS 100-150Lux HighBeam |
| rear-light | B&M Toplight 2C |
| rack | KTM tour snap-it 2.0/monkeyload|childseat + rack clip |
| mudguards | SKS A55K PET Trek 28" |
| chainguard | KTM type 9 for Bosch BDU38 |
| stand | KTM 28" adjustable MY2025 |
| lock | ABUS integrated lock IT1 (X-Plus key) |
| motor | Bosch PERFORMANCE CX BDU3840 |
| battery | Bosch PowerTUBE 800Wh horizontal |
| battery-capacity | 800 |
| display | Bosch LED Remote / KIOX 500 TFT Display |
| charger | Bosch STANDARD Charger 4A |
| Geometrie | Klik hier voor de geometrie |
| Frame size | Klik hier voor de juiste maatvoering |
