KTM

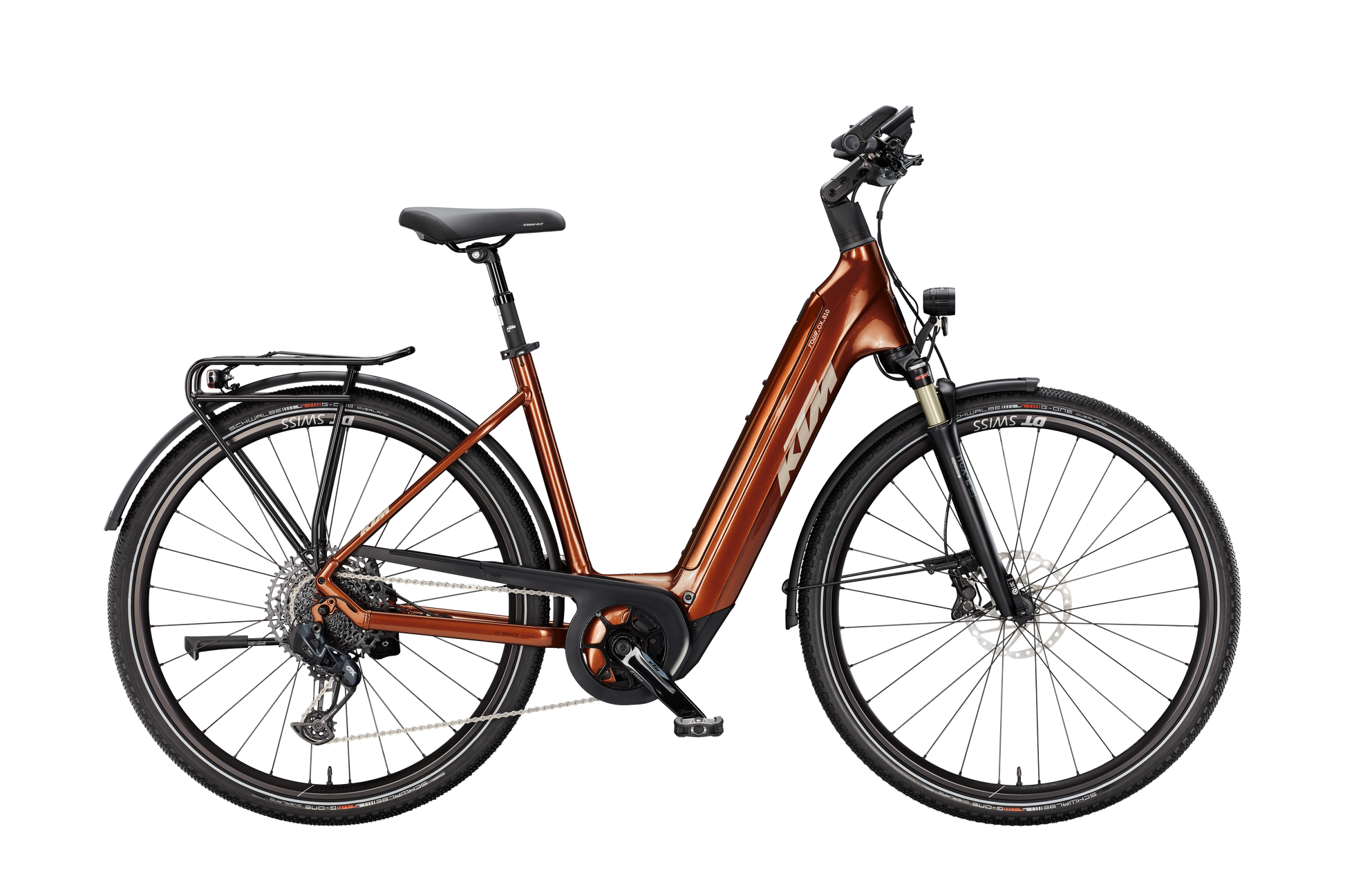

MACINA TOUR CX 810 GX AXS
MACINA TOUR CX 810 GX AXS
SKU:1260165506
| frame | Macina Trekking Onroad Alloy 6061|PT800 Bosch BDU38/T5940 |
| fork | Suntour NCX-E Air LO 63mm 15QLC 1 1/8 |
| derailleur | SRAM GX Eagle AXS 12speed |
| shift-levers | SRAM GX Eagle AXS Controller |
| brake-front | Shimano MT402 (3-F) / MT420 4-Piston |
| brake-rear | Shimano MT402 (3-F) / MT420 4-Piston |
| brake-disc-front | Shimano RT64 CL 180 |
| brake-disc-rear | Shimano EM600 CL 160 magnet |
| wheelset | DT HU 1900 CL 100/15TA|622x25TC TLR / DT HU 1900 CL 135/5QR|622x25TC SS TLR |
| tire-front | Schwalbe G-One Overland Evo SuperGround 50-622 |
| tire-rear | Schwalbe G-One Overland Evo SuperGround 50-622 |
| handlebar | KTM TEAM low rizer 640mm |
| stem | KTM Line adjust. 0-60° ICR |
| headset | Acros AICR internal 1.5"-1.5" |
| grips | Ergon GP30 |
| saddle | Selle Royal Essenza |
| seat-post | KTM Line Elegance suspension 30.9/300 |
| seat-clamp | KTM Line JD-SC99 - 34,9mm |
| crankset | KTM E-TEAM ISIS 170mm Q16 |
| drive | SRAM NX Eagle 12s |
| sprockets | SRAM NX Eagle PG-1230 / 11-50 |
| pedals | Trekking-Pedal VP-616 anti-slip |
| front-light | B&M IQ-XM 120-170Lux HighBeam |
| rear-light | B&M Dart brex |
| rack | KTM light snap-it 1.0 |
| mudguards | SKS A55K PET Trek 28" front |
| chainguard | KTM type 9 for Bosch BDU38 |
| stand | KTM 28" adjustable |
| lock | ABUS integrated lock IT1 (X-Plus key) |
| motor | Bosch PERFORMANCE CX BDU3840 |
| battery | Bosch PowerTUBE 800Wh horizontal |
| battery-capacity | 800 |
| display | Bosch LED Remote / KIOX 300 TFT Display |
| charger | Bosch STANDARD Charger 4A |
| Geometrie | Klik hier voor de geometrie |
| Frame size | Klik hier voor de juiste maatvoering |
